How Does Water Jet Cutting Work? A Complete Guide

Water jet cutting is a pioneering technology that enables precise and accurate cutting of materials using an ultra-high-pressure stream of water. This method operates without generating heat, making it ideal for delicate items and materials that are prone to warping. By utilizing a powerful jet, often combined with abrasives, it can effectively cut through a wide range of materials, from soft rubber to hardened steel.

Key components of water jet cutting include a high-pressure pump that pressurizes the water, a cutting head that directs the stream, and a nozzle that focuses the jet for precision. The process offers numerous benefits, including the elimination of heat-affected zones, which prevents warping and maintains the integrity of the material. Its versatility allows for intricate designs and complex shapes to be cut efficiently, making it suitable for various applications across multiple industries.

Water Jet Cutting Basics

Water jet cutting is a versatile process capable of cutting through a wide range of materials. It works by forcing high-pressure water through a small diameter hole, creating an extremely powerful jet that can cut even the most resistant materials. One of the major advantages of this method is that it’s considered a cold-cutting process, meaning it doesn’t generate heat-affected zones during cutting.

This cold-cutting property is particularly beneficial for heat-sensitive materials such as plastics, rubber, and composites, as it prevents thermal distortion or warping. Furthermore, since no heat is used in the process, it doesn’t alter the material’s integrity or properties. This ensures that the final product meets required specifications without compromising quality.

The flexibility of water jet cutting makes it an excellent choice for various applications across multiple industries. It can handle delicate materials as easily as it can cut through tough metals, all while maintaining precision and avoiding heat-related issues. This versatility, combined with its ability to preserve material properties, makes water jet cutting a valuable technology in modern manufacturing and fabrication processes.

Types of Water Jet Cutting

Pure Water Jet: Only water is used in this method and it typically deals with softer materials such as rubber, foam, or plastics.

Abrasive Water Jet Cutting: This is used for cutting harder materials like metals, stone, and ceramics where abrasives are added to the water stream.

We employ both types at MCMF depending on the material and project needs.

Step by Step Water Jet Cutting

So first of all, here we have the main factors and procedure for water jet cutting in detail:

1. Water Pressurization

It all starts with a high-pressure pump that takes WATER and cranks it up to extreme levels — usually 60,000-90,00 psi. That’s nearly 1,000 times more powerful than a regular car wash.

2. Water Delivery

Pressurized water is sent to high-pressure tubing and pipes that transport the pressurized water to a cutting head.

3. Nozzle and Orifice

A flow of water travels through the cutting head, passing out a jewel orifice (often made from sapphire; ruby, and diamond) This orifice, usually 0.010 to 0.015 inches in diameter, directs the water into a very thin stream at high velocities.

4. Adding abrasive (for Abrasive Water Jet Cutting)

When cutting materials, you would add abrasive particles (usually garnet) to the water stream. These abrasive particles are stored on a hopper and fed into the cutting head where they mix with water.

5. Mixing Tube

The water and abrasive are mixed in a mixing tube. A tube focuses the abrasive-laden water, which forms a coherent cutting stream.

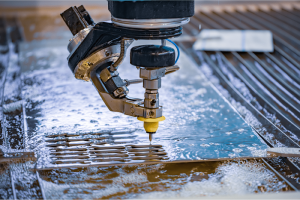

6. Cutting Action

A high-velocity stream of water (sometimes, together with abrasives) leaves the cutting head at speeds that can approach 2500 miles per hour. This carves through the metal by quickly eroding it.

7. Catcher Tank

In water jet cutting, a high-pressure stream of water is used to cut through various materials, making it effective for both soft and hard substances. This cold-cutting process prevents heat-affected zones, which is ideal for heat-sensitive materials.

The cutting occurs in a tank filled with liquid, which helps dissipate energy, collect waste material, and reduce noise and debris. This setup enhances safety and cleanliness while allowing for precise cuts. Water jet cutting is widely used across industries due to its ability to produce intricate designs and maintain material integrity.

Water Jet Cutting Process Science

Water jet cutting relies on the principle of concentration to achieve its effectiveness. As high-pressure water is forced through a tiny orifice, it accelerates to hypersonic velocity, creating a powerful cutting stream. This concentrated jet of water is capable of cutting through various materials with precision.

To enhance cutting power, especially for harder materials, abrasive particles are often added to the water stream. This process is known as Abrasive Water Jet.  (AWJ) cutting. In AWJ, the high-speed water stream propels abrasive particles, typically garnet sand, at extreme velocities. These rapidly moving particles do most of the actual cutting, significantly increasing the system’s ability to cut through tough materials.

This combination of high-pressure water and abrasive particles enables water jet cutting to tackle even the hardest materials, such as steel and stone, with remarkable efficiency. The versatility of this method, capable of cutting both soft and extremely hard materials, makes it a valuable tool in various manufacturing and fabrication processes.

What are the benefits of Water Jet Cutting?

After years of experience with water jet cutting, we have discovered that these are key elements to our success at MCMF and want to share them with you:

Water jets are versatile because they can cut almost any material – from soft rubber to hard steel.

No Heat-Affected Zone: Water jet cutting, unlike thermal cutting methods, will not heat the material. Which is to say: no thermal distortion or change in intrinsic material characteristics.

Security: Water jet cutting can reach very high tolerances down to approximately 0.005 inches

Less Waste: Due to the narrow kerf, less material is wasted during your cut.

Green: Water jet cutting uses only water and natural abrasives, with no toxic fumes released.

Capacity of Cutting Thick Material: Water jets can cut material that is a few inches thick, based on instructions.

Industry Applications of Water Jet Cutting

We use water jet cutting for a variety of applications at Motor City Metal Fab including;

Automotive Components

With a focus on the automotive industry, we manufacture things such as body panels, interior & name plates, and engine parts, etc. A water jet cutter is a lot more versatile than mechanical cutters available on the market, which allows it to work with anything from thin gauge plastics and foams to 12″ steel plating (50mm of thickness).

Aerospace Parts

To serve our aerospace customers, water jet cutting is used to manufacture parts demanding very tight tolerances and material properties. Such components include not only titanium and composite parts but firmware, as well.

Industrial Machinery Parts

Using specialization in handling thick materials and complex shapes, we produce a few parts for use on different industrial machinery.

Integration With Other MCMF Services

Water jet cutting is one aspect of our full-service manufacturing at MCMF. Water jet cutting is frequently combined with our other services to offer total solutions;

If you were to ask someone with no experience in manufacturing; what the difference between CAD design and CAM machining is, they wouldn’t be able to answer!

Secondary CNC Machining: Additional custom machining beyond water jet cutting can be used to further machine the parts if increased precision is required or additional features are needed.

Welding & Fabrication: Water Jet cut parts are often small pieces in larger assemblies which we can weld and fabricate here on site.

Powder Coating: We have powder coating services available for post-manufactured treatments for added durability and visual appeal.

Assembly & Shipping: We can assemble, water jet complex products and ship the product with your instructions.

So, Select the cutting method properly.

As versatile as water jet cutting is, it’s NOT the best option for every job. Laser cutting is possible as well at MCMF, which may be ideal for some other applications.

Our team of experts can assist you with all the necessary information required to determine the best cutting method for your particular project, material type, thickness desired finish, and production volume.

Future of Water Jet Cutting

With ongoing technological advances, we anticipate exciting innovations in water jet cutting at Motor City Metal Fab. One area to watch is the potential for increased cutting pressure, which could enable faster cutting and the ability to handle thicker materials. Additionally, improvements in nozzle design and motion control may enhance precision and accuracy, allowing for tighter tolerances and more intricate cuts. The integration of advanced automation and software could also streamline operations, making the cutting process more efficient and user-friendly. These developments will further solidify MCMF’s position as a leader in water jet cutting technology:

Higher Pressure Systems: In the future, pumps may produce even higher pressures to cut faster and better.

Advanced Abrasives: New abrasive materials have the potential to make cutting faster.

Better Software: The better CAD/CAM software allows for more advanced cuts and also may be faster.

Integration with Robotics: Possible to combine water jet cutting in a robotic system where the production can be more flexible and semi-automatic.

Conclusion

Water jet cutting is a highly effective technology that plays a significant role in advanced machining, and it is one of the many services we offer at Motor City Metal Fab. Whether you need precise parts with tight tolerances for aerospace applications or custom components for industrial machinery and architectural projects, our water jet cutting service can meet your needs.

As a family-owned business, we understand the importance of personalized service. We work closely with our customers to ensure their projects succeed, rather than just operating machines. Based in Detroit and Northwest Ohio, we serve Michigan, the Midwest, and beyond, maintaining high standards of quality and precision in our products.

If you’re considering water jet cutting for your upcoming project, we encourage you to reach out to us. Our team of experts is ready to help you determine if water jet cutting is the right choice for your needs and how it can complement our other services to provide a comprehensive manufacturing solution.

FAQs

What materials can be cut with a water jet?

Water jets can cut almost any material, including metals (steel, aluminum), marble, glass, plastics, rubber, foam, and composites. Exceptions include tempered glass (which shatters) and very hard materials like diamonds. Water jet cutting can handle materials up to several inches thick, with even greater thicknesses possible for softer materials like plastics or wood.

How thick can a water jet cut?

The cutting thickness depends on the material. For metals, water jet systems typically cut up to 6 inches, while softer materials can be cut even thicker. Very thick materials may require multiple passes.

Is water jet cutting more precise than laser cutting?

Water jet cutting has a tolerance level of about ±0.005, making it suitable for thicker materials. Laser cutting can sometimes achieve tighter tolerances for thin materials.

Does water jet cutting affect the properties of the material?

Water jet cutting is a cold process, so it doesn’t create heat-affected zones or alter material properties. This makes it excellent for cutting heat-sensitive materials.

Is water jet cutting environmentally friendly?

Yes, it’s environmentally friendly. It uses only water and natural abrasives, requires no hazardous chemicals, produces no toxic waste, and doesn’t emit fumes or gases.
